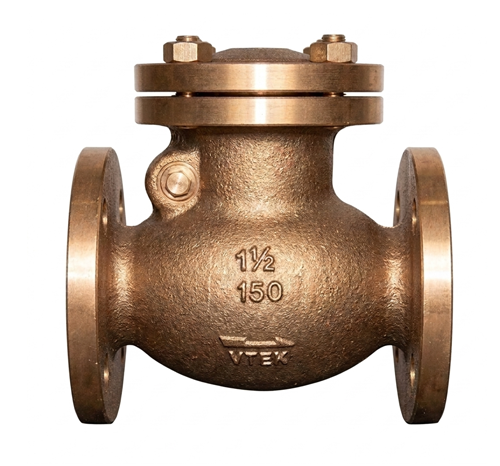

BRONZE CHECK VALVES
SCF SERIES
The SCF Series is a Class 150 bronze swing check valve designed for reliable one-way flow control in industrial and commercial piping systems. Its full-port swing disc provides minimal flow restriction and low pressure drop during operation, while the integral body seat provides positive sealing when flow reverses. Constructed from C95800 nickel aluminum bronze, the valve offers excellent corrosion resistance for demanding industrial and marine environments. A bolted cover provides convenient access for maintenance, and the valve can be installed in either horizontal or vertical up-flow piping. Designed and tested to recognized API and ASME standards, the Series SCF is well suited for water, oil, gas, and many chemical services across a wide range of operating temperatures.
SIZE
NPS 3″
BODY MATERIAL
ASTM B148 C95800 Nickel Aluminum Bronze
END CONNECTIONS
Flanged
PRESSURE CLASS
Class 150
TEMPERATURE RANGE
-20°F to 482°F
SEAT DESIGN
Integral Body Seat
INSTALLATION
Horizontal or Vertical (Up-Flow)
SPRING CHECK VALVES
VSC SERIES
Engineered to prevent backflow and protect pumps, equipment, and process lines across chemical processing, oil and gas, steam systems, water treatment, pharmaceutical, food and beverage, and general industrial service, the VSC Series is a compact in-line spring check valve available in 1/2″–3″ sizes with investment-cast CF8M stainless bodies, 316 stainless internals, and PTFE or TFM1600 seats for compatibility with chemicals, steam, and a wide range of media. Its low-cracking-pressure design with optional Inconel spring opens quickly under forward flow and closes positively against reverse flow, while threaded FNPT ends and a short face-to-face make installation simple in tight piping runs. Rated to 800 psi (1/2″–2″) and 600 psi (2½”–3″), built to ANSI B1.20.1 and ISO 9001 standards, and 100% air-tested under water at 80 psi, the VSC Series is the reliable, install-and-forget backflow protection your system needs.
sizeS
1/2″ – 3″
BODY MATERIALS
Stainless Steel, 316L Stainless Steel
END CONNECTIONS
FNPT
SEATS
PTFE, TFM-1600, Metal
PORT
Reduced Port
OPERATOR
Bare Stem
PRESSURE RATING
1/2″ – 2″ 800 psi
2-1/2″ – 3″ 600 psi

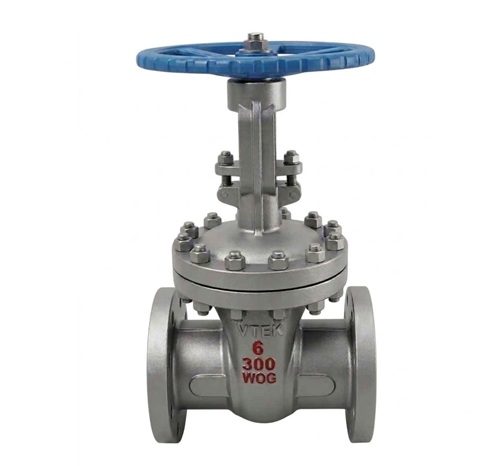

WEDGE GATE VALVES
KO SERIES
The KO Series is a rugged wedge gate valve designed for dependable isolation in demanding industrial, oil and gas, and pipeline applications. Its straight-pattern body features an outside screw and yoke (OS&Y), rising stem, and bolted bonnet design for reliable operation and convenient maintenance. Available with flanged or butt-welded end connections and a broad selection of body materials, the Series KO can be configured for corrosive, high-temperature, low-temperature, and other challenging services. Handwheel operation is standard, with impact handwheels for larger sizes and bevel gear operation available when required. Designed and tested to recognized ASME and API standards, the Series KO is well suited for pipeline isolation, produced water and brine, suction and discharge isolation, blowdown, and fluid or gas well injection service.
sizeS
1/2″ – 40″
BODY MATERIALS
Carbon Steel, Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Nickel Aluminum Bronze
END CONNECTIONS
Flanged or Butt Welded
PRESSURE CLASSES
ANSI 150, 300, 600
BODY DESIGN
Straight Pattern
BONNET/STEM
Bolted Bonnet, OS&Y Rising Stem
Operation
Handwheel, Bevel Gear Available

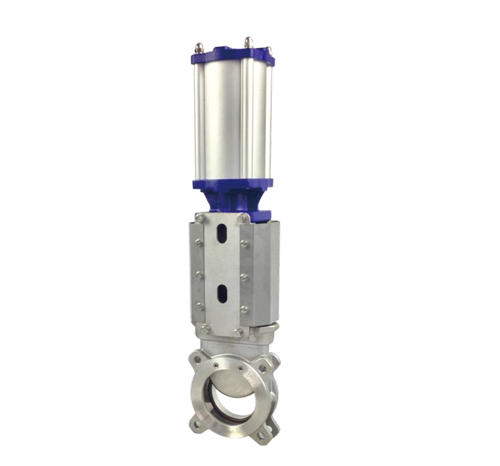

KNIFE GATE VALVES
VKG SERIES
Engineered for reliable isolation in demanding paper and industrial applications, the VKG Series Knife Gate Valve features a full-port design that minimizes pressure drop and maximizes flow capacity, with a beveled knife-edge gate designed for effective cutting and tight sealing. Available in 2″–24″ sizes with WCB, CF8, or CF8M bodies and soft or metal seat options, the VKG Series can be configured with rising or non-rising stems and a wide range of manual, pneumatic, electric, and hydraulic actuation options. Its replaceable side-entry seat simplifies maintenance, while cast-in gate guides help reduce clogging and promote tighter shutoff. Rated ANSI 150, with Class VI shutoff for EPDM soft seats and Class IV for metal seats, the VKG Series provides a versatile, durable solution for challenging industrial flow applications.
sizeS
2″ – 24″
BODY MATERIALS
WCB Carbon Steel, CF8 Stainless Steel, CF8M Stainless Steel
SEAT OPTIONS
EPDM Soft Seat, Metal Seat
PORT
Full Port
Pressure Class
ANSI 150
SOFT SEAT SHUTOFF
Class VI
METAL SEAT SHUTOFF
Class IV
ADDITIONAL OPTIONS
Flush Ports, V-Port Deflection, Cone Flushing Port, Fabricated Wafer-Style Design

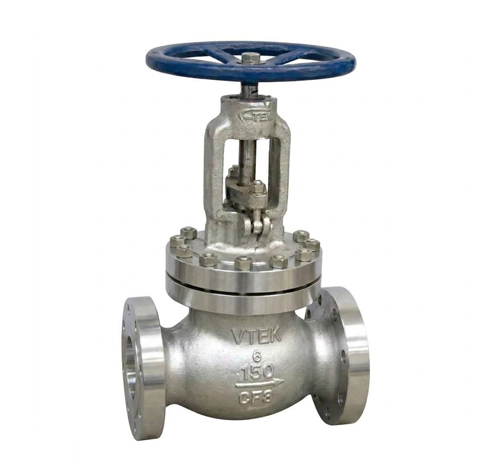

GLOBE VALVES
GB SERIES
The GB Series is a rugged industrial globe valve designed for reliable flow control and isolation in demanding liquid and gas applications. Its straight-pattern body features an outside screw and yoke (OS&Y), rising stem, and bolted bonnet design for dependable operation and convenient maintenance. Available with flanged or butt-welded end connections and a wide range of body materials, the Series GB can be configured for corrosive, high-temperature, low-temperature, and other challenging services. Handwheel operation is standard, with impact handwheels for larger sizes and bevel gear operation available when required. Designed and tested to recognized BS, ASME, and API standards, the Series GB is well suited for oil and gas pipelines, produced water and brine, station and meter isolation, blowdown, and fluid or gas well injection applications.
SIZES
1″ – 16″
BODY MATERIALS
Carbon Steel, Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Nickel Aluminum Bronze
END CONNECTIONS
Flanged or Butt Welded
PRESSURE CLASSES
ANSI 150, 300, 600
BODY DESIGN
Straight Pattern
Bonnet/Stem
Bolted Bonnet, OS&Y Rising Stem
OPERATION
Handwheel, Bevel Gear Available
