BALL VALVES
TWO PIECE BALL VALVES
21 SERIES
Engineered for demanding service across chemical processing, oil and gas, petrochemical, pharmaceutical, food and beverage, water treatment, pulp and paper, power generation, and general industrial applications, the 21 Series is a versatile two-piece, full-port 800/1000 WP ball valve available in 1/4″–3″ sizes with CF8M, WCB, CF3M, Duplex, or Hastelloy C bodies to match virtually any media. Rated to 1000 psi with a blow-out proof stem, ISO 5211 direct mounting, threaded or socket weld connections, and a variety of seat options, it delivers tight shutoff and long service life built to ASME, ISO, API 598, and EN10204-3.1 standards. V-port versions in 15°, 30°, 60°, and 90° configurations feature a V-notch machined directly into the ball for precise regulating service without frequent seat replacement.
SIZES
1/4″ – 3″ (DN 8- DN 80)
BODY MATERIALs
Stainless Steel, Carbon Steel, Duplex, Hastelloy C
END CONNECTIONS
Threaded, Socket Weld
SEATS
RTFE, PEEK, UHMWPE, TFM-1600, CTFE
PORT
Full Port, V-port 15°, V-port 30°, V-port 60°, V-port 90°
OPERATOR
Bare Stem, Locking Handle, Gear Operated, Oval Handle, Spring Return Handle
PRESSURE RATING
1000 psi
THREE PIECE BALL VALVES
31 SERIES
Engineered for demanding service across chemical processing, oil and gas, petrochemical, pharmaceutical, food and beverage, water treatment, pulp and paper, power generation, and general industrial applications, the 31 Series is a versatile three-piece, full-port 800/1000 WP ball valve available in 1/4″–4″ sizes with CF8M, WCB, CF3M, Duplex, Alloy 20, Hastelloy C, or Monel bodies to handle virtually any media. Rated to 1000 psi (1/4″–2″) and 800 psi (2½”–4″) with a blow-out proof stem, adjustable external packing, ISO 5211 direct mounting, and threaded, socket weld, butt weld, or flanged connections, the three-piece body delivers tight shutoff and easy in-line servicing without removing the valve from the line. Built to ASME, ISO, API 598, TA-Luft, ISO-15848, and CE standards with V-port (30°, 60°, 90°), fugitive emissions, vented ball, and oxygen-cleaned options.
SIZES
1/4″ – 4″ (DN 8- DN 100)
BODY MATERIALS
Stainless Steel, Carbon Steel, Duplex, Hastelloy C, Alloy 20, Monel
END CONNECTIONS
Threaded, Socket Weld, Butt Weld, Extended Butt Weld, ANSI 150 RF, ANSI 300 RF
SEATS
RTFE, PEEK, UHMWPE, TFM-1600, CTFE
PORT
Full Port, V-port 15°, V-port 30°, V-port 60°, V-port 90°
OPERATOR
Bare Stem, Locking Handle, Gear Operated, Oval Handle, Spring Return Handle
PRESSURE RATING
1/4″ – 2″ 1000psi
2-1/2″ – 4″ 800 psi
32 SERIES
Built for the toughest applications in oil and gas, petrochemical, chemical processing, pulp and paper, mining, pharmaceutical, and general industrial service, the 32 Series is a high-pressure three-piece, full-port 2000 WP ball valve available in 1/4″–4″ sizes with CF8M, WCB, CF3M, 316L, Alloy 20, Duplex, Hastelloy C, Titanium, or Monel bodies to handle even the most aggressive media. Rated to 2000 psi (1/4″–1″), 1500 psi (1¼”–2″), and 1000 psi (2½”–3″) with a blow-out proof stem, ISO 5211 direct mounting, and threaded, socket weld, butt weld, or flanged connections, it offers an extensive seat lineup — including engineered metal seats for high-temperature, high-pressure, and abrasive service. Built to ASME, ISO, API 598, API 607 fire-safe, TA-Luft, ISO-15848, and CE standards with V-port, fugitive emissions, jacketed, and vented ball options.
SIZES
1/4″ – 4″ (DN 8- DN 100)
BODY MATERIALS
Stainless Steel, Monel, 17-4PH, Inconnel, Duplex St, Alloy 20, Chrome Moly
END CONNECTIONS
Threaded, Socket Weld, Butt Weld, Extended Butt Weld, ANSI 150 RF, ANSI 300 RF
SEATS
RTFE, PTFE, 50/50 STFE, CTFE, TFM-1600
PORT
Full Port, Reduced Port, V-port 15°, V-port 30°, V-port 60°, V-port 90°
OPERATOR
Bare Stem, Locking Handle, Gear Operated, Oval Handle, Spring Return Handle
PRESSURE RATING
1/4″ – 1″ 2000 psi
1-1/4″, 2″ 1500 psi
2-1/2″ – 3″ 1000 psi

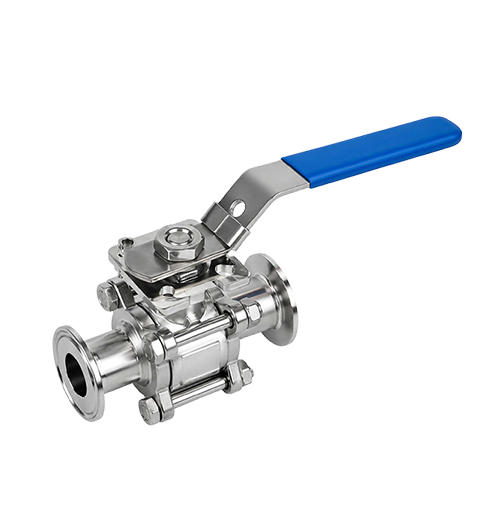

31CF SERIES
Purpose-built for hygienic service in food and beverage, dairy, brewing, pharmaceutical, biotech, and clean-process applications, the 31CF Series is a sanitary three-piece, full-port 800/1000 WP ball valve available in 1/2″–4″ sizes with CF8M, CF3M, or Alloy 20 bodies, FDA-compliant TFM1600 or PTFE seats, and tri-clamp or sanitary tube weld ends to integrate seamlessly into clean process lines. Rated to 1000 psi (1/2″–2″) and 800 psi (2½”–4″) with a blow-out proof stem, ISO 5211 direct mounting, and an internal polish to SF5 0.5 µm (electropolish available), it meets EC 1935/2004, EU 10/2011, 3-A, API 598, ISO 9001/5209, TA-Luft, and ISO-15848 standards for safe contact with consumable products. An optional self-cleaning/flushing ball design flushes residue from the valve cavity during normal flow, and V-port (30°, 60°, 90°), fugitive emissions, vented ball, and spring handle options round out a sanitary workhorse built to deliver clean, reliable performance batch after batch.
SIZES
1/2″ – 4″
BODY MATERIALS
Stainless Steel, 316L Stainless Steel, Alloy 276
END CONNECTIONS
Tri-clamp, Sanitary Tube Ends
SEATS
PTFE, TFM-1600
PORT
Full Port, V-port 15°, V-port 30°, V-port 60°, V-port 90°
OPERATOR
Bare Stem, Locking Handle, Gear Operated, Oval Handle, Spring Return Handle
PRESSURE RATING
1/2″ – 2″ 2000 psi
2-1/2″ – 4″ 800 psi
THREE WAY BALL VALVES

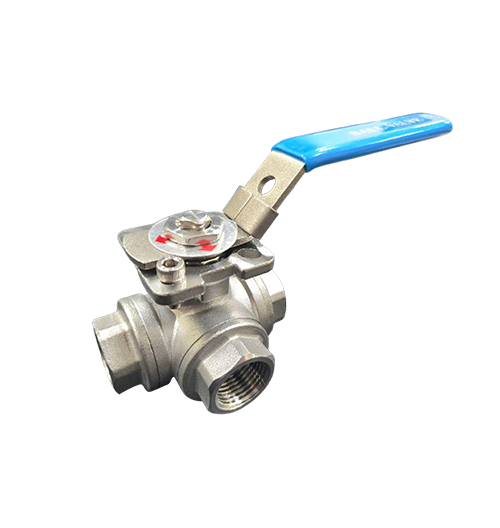

3W SERIES
sizeS
1/4″ – 2″
BODY MATERIALS
Stainless Steel
END CONNECTIONS
Threaded, Socket Weld
SEATS
RTFE, TFM-1600
PORT
Full Port, Reduced Port
OPERATOR
Bare Stem, Locking Handle, Oval Handle, Spring Return Handle
PRESSURE RATING
Full Port 800 WOG
Reduced Port 1000 WOG
3CF Series
Built for hygienic mixing, diverting, and flow-isolation service in food and beverage, dairy, brewing, pharmaceutical, biotech, and clean-process applications, the 3CF Series is a sanitary cavity-filled three-way (and four-way) ball valve available in 1/2″–4″ sizes with CF8M or CF3M bodies, FDA-compliant PTFE, TFM1600, or UHMWPE seats, and tri-clamp or tube OD butt weld ends. Its four-seat trunnion design with stem-to-ball insert pin and PTFE cavity filler eliminates dead space — preventing media buildup and enabling fast, thorough cleaning batch after batch. Rated to 1000 PSIG (1/2″–1″) and 800 WOG (1½”–4″) with a blow-out proof stem, ISO 5211 mounting, and 8–12 Ra internal finish, it meets EU 10/2011, EC 1935/2004, ASME/BPE, API 598, and ISO 9001 standards, with L-port, T-port, I-port, and X-port ball configurations plus optional extended bonnet, 180° travel stop, and PTFE/PFA coating.
SIZES
1/2″ – 4″
BODY MATERIALS
Stainless Steel, 316L Stainless Steel
END CONNECTIONS
Tri-clamp, Tube Butt Weld
SEATS
PTFE, TFM-1600, UHMWPE
PORT
Full Port (L), Full Port (T), Full port (LL), Full Port
OPERATOR
Bare Stem, Locking Handle, Oval Handle
PRESSURE RATING
1/2″ – 1″ 1000 psig
1-1/2″ – 4″ 800 WOg
FLANGED BALL VALVES

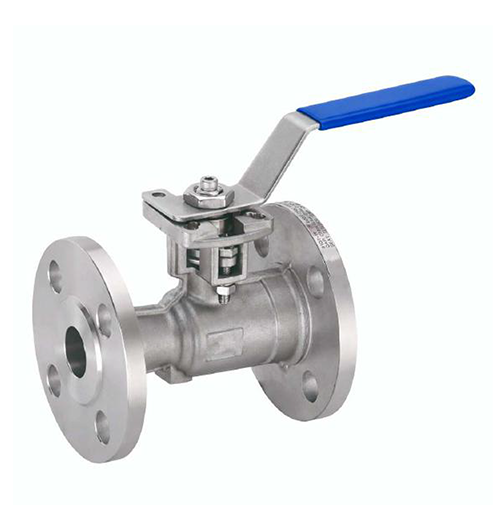

1F SERIES
SIZES
1/2″ – 6″
BODY MATERIALS
Stainless Steel, Carbon Steel, Duplex, Alloy 20, Hastelloy
END CONNECTIONS
ANSI 150 RF, ANSI 300 RF
SEATS
RTFE, UHMWPE, 50/50 STFE, CTFE, Metal
PORT
Full Port, Reduced Port, V-port 30°, V-port 60°, V-port 90°
OPERATOR
Bare Stem, Locking Handle, Gear Operated, Oval Handle, Spring Return Handle
TESTING
API 607 7th Edition

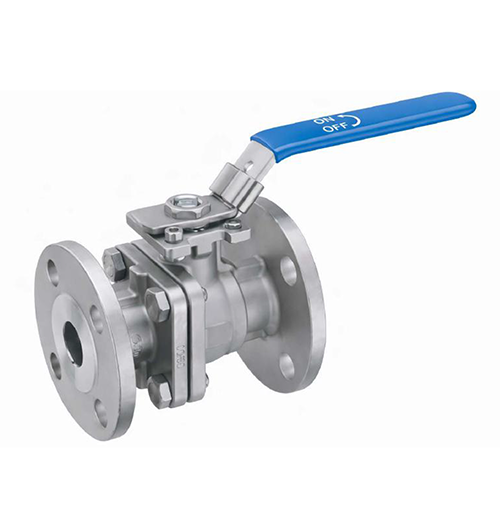

2F SERIES
Built for process plants and pipelines that demand serviceability without sacrificing performance, the 2F Series is a two-piece flanged ball valve available in 1/2″–12″ sizes — covering everything from small instrumentation lines to large mainline service across oil and gas, petrochemical, chemical processing, refining, pharmaceutical, food and beverage, water treatment, pulp and paper, and power generation. Its two-piece bolted body design allows the end cap to be removed for in-line seat and ball inspection or replacement without unbolting the entire valve from the pipeline, while a variety of body materials can handle even the most aggressive media. Available with ANSI 150 or 300 flanges, an extensive soft and metal seat lineup, V-port trim (15°–90°), and certifications including ASME B16.34, API 598, API 607 fire-safe, DIN 3202, TA-Luft, ISO-15848, and CE 2014/34/EU.
SIZES
1/2″ – 12″ (DN 15 – DN 300)
BODY MATERIALS
Stainless Steel, Carbon Steel, 316L Stainless Steel, Duplex, Monel, Hastelloy, Alloy 20
END CONNECTIONS
ANSI 150 RF, ANSI 300 RF
SEATS
RTFE, 40/40 STFE, CTFE, TFM-1600, UHMWPE, Metal
PORT
Full Port, V-Port 15°, V-port 30°, V-port 60°, V-port 90°
OPERATOR
Bare Stem, Locking Handle, Gear Operator, Oval Handle, Spring Return Handle
TESTING
API 607 7th Edition

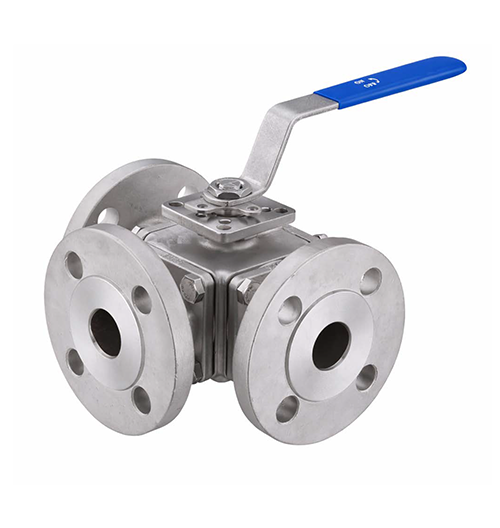

3F SERIES
Built to simplify piping systems by replacing multiple two-way valves with a single multi-port valve, the 3F Series is a flanged three-way (and four-way) ball valve available in 1/4″–8″ sizes with WCB or CF8M bodies, ANSI 150/300 RF flanges, and PTFE, TFM1600, or TFM4215 seats. Its trunnion-supported ball keeps operating torque low, and a full range of ball patterns — L-port, T-port, I-port, and X-port (double L) — handles mixing, diverting, selector, and bypass duties across chemical processing, oil and gas, water treatment, refining, pharmaceutical, food and beverage, and general industrial service. NACE MR-01-75 compliant and built to ASME, MSS SP-55, EN 12516-1, and API 598 standards, with optional cavity-filled construction, fugitive emissions bonnet, and 180° travel stop, the Series 3F streamlines flow control while reducing leak paths and installation costs.
SIZES
1/2″ – 8″
BODY MATERIALS
Stainless Steel, Carbon Steel
END CONNECTIONS
Threaded, Socket Weld, Butt Weld, ANSI 150 RF, ANSI 300 RF
SEATS
RTFE, TFM-1600, TFM4215, Metal
PORT
Full Port (L), Full Port (T), Full Port (LL), Full Port
OPERATOR
Bare Stem, Locking Handle, Oval Handle
PRESSURE RATING
ANSI 150 / 300
