Automation Accessories

GEAR OPERATORS

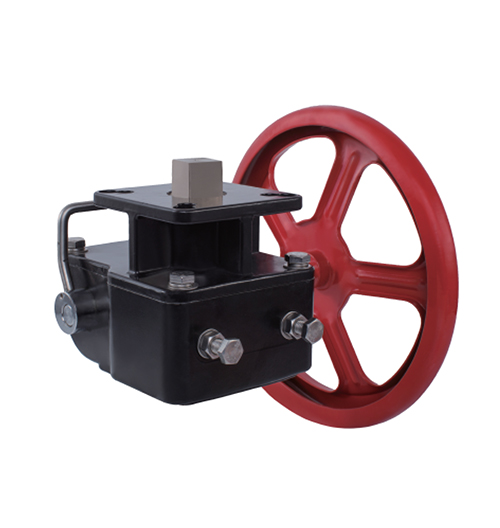

VDG SERIES

The VDG Series declutchable gear override is engineered to assist pneumatic and electric actuators on 90°-stroke quarter-turn valves — including ball, plug, and butterfly valves — providing safe, reliable manual backup across oil and gas, chemical processing, water and wastewater, power generation, pulp and paper, and general industrial applications. Built with a new-generation worm-and-vortex-rod drive mechanism, it delivers high output torque in a compact, lightweight ISO 5211 housing with self-locking worm gear and dual independent ±10° travel stops for precise open/close adjustment. Factory-lubricated with a nickel-plated anti-off output shaft, sealed dust- and water-proof construction, corrosion-resistant finishes, and a simple lift-pin handle for seamless auto-to-manual switching, the VDG Series operates from -40°F to 302°F and is the high-performance, standards-compliant gear override built for demanding industrial service.

SIZES

VDG-SD1 to VDG-SD07

MATERIALs

Aluminum Alloy

torque range

442 in-lbs to 37174 in-lbs

connection

ISO 5211 Patterns (M X F)

gear ratio

26:1 to 98:1

DATA SHEET

LINE CARD

REQUEST A QUOTE

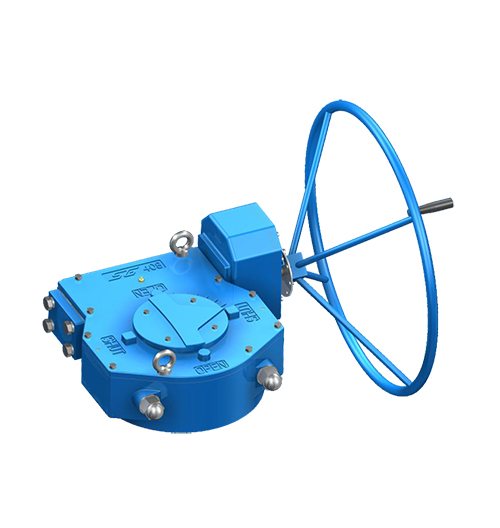

VMG SERIES

The VMG Series is a partial-turn manual gear operator built for 90° rotary butterfly, ball, and plug valves, dampers, and similar quarter-turn applications across oil and gas, chemical processing, water and wastewater, power generation, pulp and paper, and general industrial service. Available in 15 models with gear ratios from 42:1 to 3525:1 and output torque from 720 Nm up to 150,000 Nm, the close torque spacing between models lets you spec exactly what your application needs without overpaying for excess capacity. Built with a rugged ductile iron housing and worm gear, protected steel input shaft, NBR seals, and IP68 protection, the VMG operates from -4°F to 248°F with 0–90° rotation and ±5° adjustable travel stops, plus a locking handwheel as standard — delivering reliable manual control where it matters most.

SIZES

VMG-007 to VMG-0808

MATERIALs

Ductile Iron

torque range

708 in-lbs to 132650 in-lbs

connection

ISO 5211 Patterns (M X F)

gear ratio

42:1 to 3525:1

DATA SHEET

LINE CARD

REQUEST A QUOTE

LIMIT SWITCHES

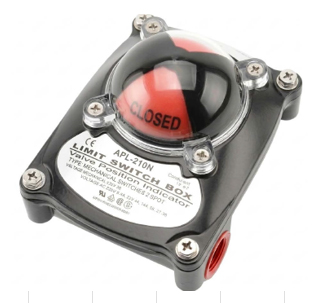

APL 210N SERIES

The APL-210N Series is a rugged, weatherproof valve position monitor that delivers reliable open/close feedback on pneumatic actuators for general industrial applications. Its IP68-rated die-cast aluminum enclosure features a shatterproof polycarbonate dome, red/yellow visual indicator, and vibration-resistant color-coded cams for clear local indication and dependable remote signaling from -20°F to 176°F.

With two 1/2″ NPT conduit entries, NAMUR mounting, internal solenoid termination, and two SPDT switches rated 5A @ 125/250 VAC, the CE-compliant APL-210 is the durable, easy-to-set switch box that keeps your actuated valves monitored and your process running.

ratings

IP 67

mounting

Universal

materials

Aluminum Die Cast

connection

1/2″ FNPT (2)

rating

indicator

Red / Yellow

switches

Mechanical, Proximity (PF)

DATA SHEET

LINE CARD

REQUEST A QUOTE

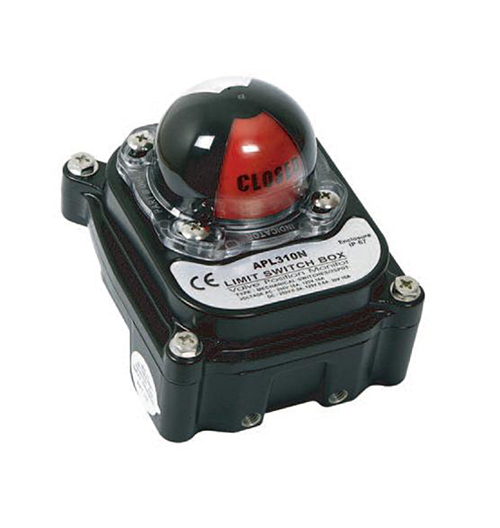

APL 310N SERIES

The APL-310N Series limit switch is a rugged, weatherproof valve position monitor designed to provide reliable open/close feedback on pneumatic actuators across oil and gas, chemical processing, water and wastewater, power generation, pulp and paper, and general industrial applications. Housed in a powder-coated aluminum die-cast enclosure rated IP68 with a shatterproof polycarbonate dome, red/yellow visual indicator, and color-coded serrated cams that lock together to resist vibration, it delivers clear local position indication and dependable remote signaling from -76°F to 248°F. Built with two 1/2″ NPT conduit entries, NAMUR mounting, internal solenoid termination, and 2× SPDT mechanical switches rated 16A @ 125/250VAC, the CE-compliant APL-310 is the durable, easy-to-set switch box that keeps your actuated valves monitored and your process running.

ratings

IP 68

mounting

16A, 1/2HP @ 125V / 250VA

materials

Aluminum Die Cast

connection

1/2″ FNPT (2)

rating

indicator

Red / Yellow

switches

Mechanical, Proximity (PF)

DATA SHEET

LINE CARD

REQUEST A QUOTE

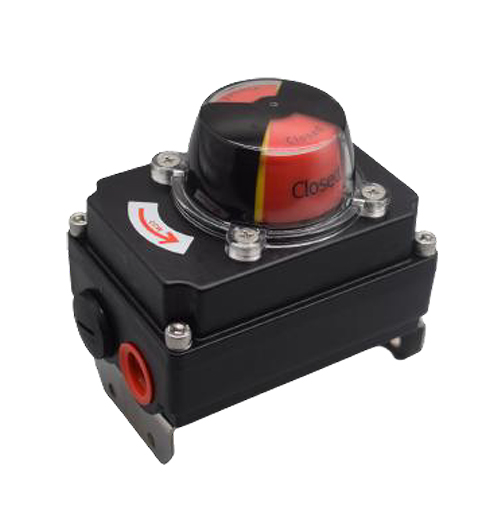

APL-410N SERIES

The APL-410N Series limit switch is a rugged, weatherproof valve position monitor engineered to provide reliable open/close feedback on pneumatic actuators across oil and gas, chemical processing, water and wastewater, power generation, pulp and paper, and general industrial applications. Housed in a powder-coated aluminum die-cast enclosure rated IP67 with a shatterproof polycarbonate dome, red/green visual indicator, and color-coded serrated cams that lock together to resist vibration, it features a twin-shaft design and a corrosion-protected laminated circuit board that eliminates internal wiring for cleaner installation and longer service life. Two 1/2″ NPT conduit entries, NAMUR mounting, internal solenoid termination, a universal bracket, and an operating range of -13°F to 176°F.

rating

IP 67

mounting

15AGP, 1/2HP, 125 250 VAC

materials

Aluminum Die Cast

connection

1/2″ FNPT (2)

rating

Indicator

Red / Yellow

switches

Mechanical, Proximity (PF)

approval

DATA SHEET

LINE CARD

REQUEST A QUOTE

TS400/410/415 SERIES

The TS400/410/415 Series limit switch notifies the central control room or controller when the valve reaches its set position, providing reliable position feedback for valve automation. The standard model offers a compact design with a high-visibility indicator, aluminum die-cast construction with polyester powder coating, spring-loaded cams for easy limit setting, and dual cable entries, while the flame-proof TS410 and stainless steel TS415 models extend this functionality to hazardous and corrosive environments. All models are built to the NAMUR VDI/VDE 3845 standard, ensuring broad compatibility with standard actuator mounting requirements.

rating

16A, 125/250V (AC)
30V, 10A, 10~30V (DC)

mounting

15AGP, 1/2HP, 125 250 VAC

materials

Aluminum Die Cast

connection

1/2″ FNPT

rating

Indicator

Red / Yellow

switches

Mechanical, Proximity

DATA SHEET

LINE CARD

REQUEST A QUOTE

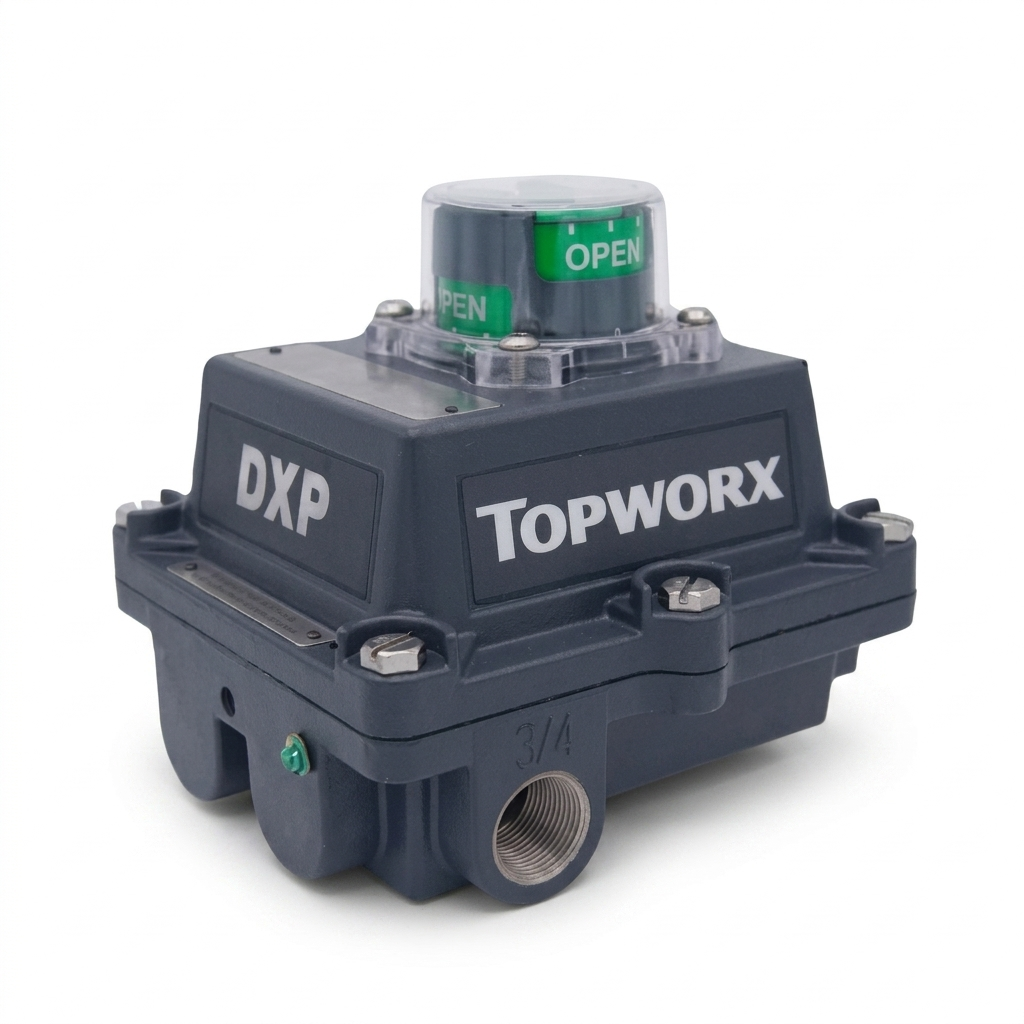

TOPWORX D SERIES

Built to deliver reliable service for a lifetime, the D-Series is engineered to withstand the most demanding applications and has been endurance-tested for over 3.5 million cycles. With rugged enclosures suited to every environment and certifications recognized worldwide, D-Series discrete valve controllers can survive virtually any plant condition. Their heavy-duty construction and corrosion resistance deliver superior performance where it matters most.

Each unit carries IECEx, ATEX, GOST, InMetro, UL, CSA, KOSHA, and NEPSI certifications in a single model—making it easier for global customers to standardize across plants in multiple regions.

rating

24 VDC or 120 VAC @250 mA

mounting

NAMUR – Direct Mount

materials

Aluminum Die Cast / 316 SS option

connection

(2) 3/4″ FNPT or (2) 1/2″ FNPT

rating

IECEx, ATEX, GOST, InMetro, UL, CSA, KOSHA, and NEPSI certifications

Indicator

Red / Green (optional colors available)

switches

Mechanical, Proximity, Inductive, Go Switches (sealed)

DATA SHEET

LINE CARD

REQUEST A QUOTE

POSITIONERS

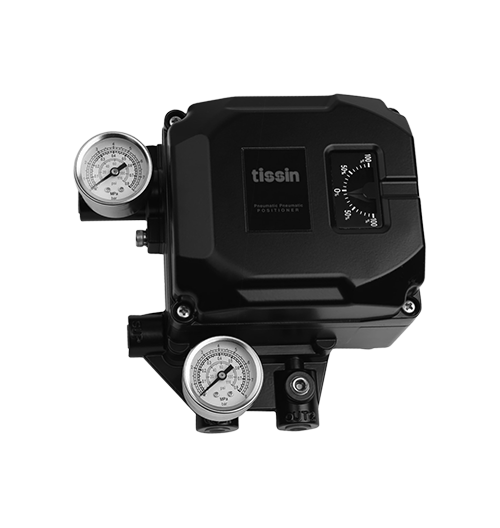

TS610 SERIES

The TS610 series is a pneumatic-pneumatic positioner that controls valve stroke in response to a 0.02–0.1 MPa input signal from the controller, available in both linear (TS610L) and rotary (TS610R) configurations. Key features include fast response time with excellent stability, simple zero and span adjustment, an IP66 enclosure, low air consumption, and a built-in bypass valve (A/M switch). Optional add-ons include a position transmitter and limit switch for enhanced monitoring and control. Multiple configuration options are available, including dome cover protection, external position transmitters (TS500/TS510), and external limit switch boxes (TS400/TS410) to suit a range of application requirements.

input signal

0.02~0.1MPa

supply pressure

0.14~0.7MPa

Stroke

10~150mm (Linear), 0~90° (Rotary)

gauge connection

NPT 1/8

Ambient TeMPerature

-14°F to 158°F

air consumption

Below 2.5 LPM (Sup = 0.14MPa)

Flow capacity

Over 80 LPM (Sup = 0.14MPa)

DATA SHEET

IOM INSTRUCTIONS

LINE CARD

REQUEST A QUOTE

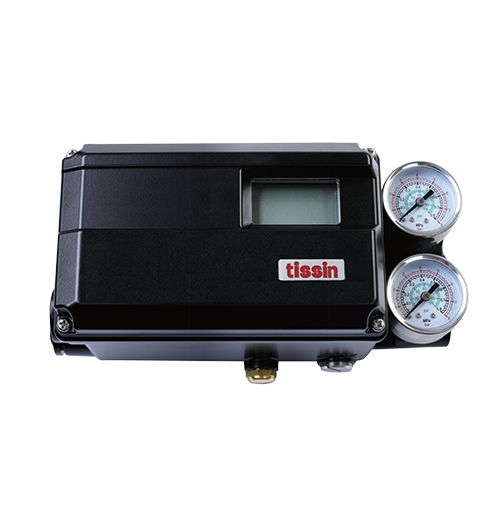

TS700 SERIES

The TS700 Smart Valve Positioner controls valve stroke in response to a 4–20 mA input signal from a control panel, DCS, or calibrator, delivering precise and reliable performance across a wide range of applications. Key features include a fail freeze function, zero air consumption in standby, an external air exhaust design that prevents circuit board corrosion, quick and easy auto calibration, and a built-in 5-micron air filter. Advanced capabilities such as HART 7 communication, partial stroke test (PST), self-diagnostics, and mechanical or proximity-type limit switches make it well-suited for demanding process environments. The unit is certified to multiple international standards (IECEx, ATEX, EAC, KCs, CCC, CE) and carries an IP66 rating for dependable operation in harsh conditions.

INPUT SIGNAL

4~20mA DC

SUPPLY PRESSURE

0.14~0.8MPa

STROKE

10~150mm (Linear), 0~90° (Rotary)

gauge CONNECTION

PT1/8, NPT 1/8

Ambient Tepmerature

-13°F to 176°F (standard)
-40°F to 176°F (low temp)
-40°F to 140°F explosion proof (T5)
-40°F to 104°F (explosion proof (T6)
-22°F to 185°F (LCD operating)

EPLOSION PROOF TYPE

Ex ia IIC T5/T6 Gb
Ex ia IIIC T212°F/185°F Db

Air consumption

Below 0.01 LPM (Sup = 0.14MPa)

flow capacity

Over 75 LPM (Sup = 0.14MPa)

DATA SHEET

IOM INSTRUCTIONS

LINE CARD

REQUEST A QUOTE

TS800 SERIES

The TS800 Smart Valve Positioner controls valve stroke in response to a 4–20 mA input signal from a control panel, DCS, or calibrator, with configurations including the standard TS800, stainless steel TS805, limit switch type, and TS820 remote type. Key features include quick auto calibration, a flapper/nozzle torque motor, bypass valve (A/M switch), HART 7 communication, partial stroke test (PST), alarm function, and optional advanced diagnostics. Certified to multiple international standards (ATEX, IECEx, CSA, CE, SIL2, TÜV) with an IP66 rating, it delivers reliable performance in demanding process environments.

INPUT SIGNAL

4~20mA DC

SUPPLY PRESSURE

0.14~0.7MPa

STROKE

10~150mm (Linear), 0~90° (Rotary)

gauge CONNECTION

PT1/8, NPT1/8

Ambient Tepmerature

-13°F to 176°F (standard)
-40°F to 176°F (low temp)
-40°F to 140°F explosion proof (T5)
-40°F to 104°F (explosion proof (T6)
-22°F to 185°F (LCD operating)

EPLOSION PROOF TYPE

Ex ia IIC T5/T6 Gb
Ex ia IIIC T212°F/185°F Db

Air consumption

Below 0.01 LPM (Sup = 0.14MPa)

flow capacity

Over 75 LPM (Sup = 0.14MPa)

DATA SHEET

IOM INSTRUCTIONS

LINE CARD

REQUEST A QUOTE

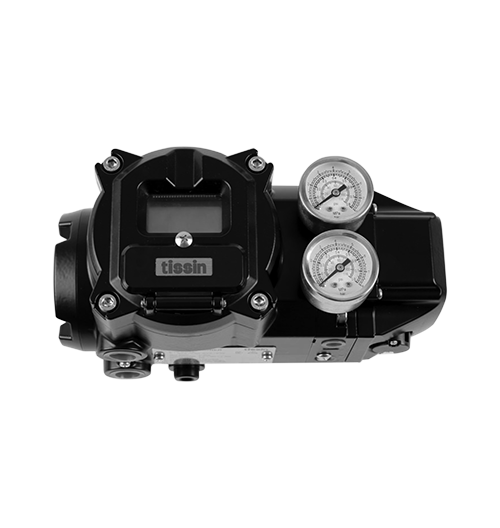

TS900 SERIES

The TS900 Smart Valve Positioner controls valve stroke in response to a 4–20 mA input signal from a control panel, DCS, or calibrator, available in the standard TS900 and stainless steel TS905 configurations. Key features include quick auto calibration, a large flow pilot valve (over 100 LPM), flapper/nozzle torque motor, bypass valve (A/M switch), HART 7 communication, partial stroke test (PST), and optional alarm function and advanced diagnostics. Certified to multiple international standards (IECEx, ATEX, CSA, CE, SIL2, TÜV) with an IP66 rating, the TS900 series is built for high-flow, demanding process applications.

INPUT SIGNAL

4~20mA DC

SUPPLY PRESSURE

0.14~0.7MPa

STROKE

10~150mm (Linear), 0~90° (Rotary)

gauge CONNECTION

NPT1/8

Ambient Tepmerature

-22°F to 176°F (standard)
-40°F to 176°F (low temp)
-40°F to 176°F explosion proof (T5)
-40°F to 158°F (explosion proof (T6)
-22°F to 185°F (LCD operating)

EPLOSION PROOF TYPE

Ex ia IIC T5/T6 Gb
Ex ia IIIC T212°F/185°F Db

Air consumption

Below 2.3 LPM (Sup = 0.14MPa)

flow capacity

Over 100 LPM (Sup = 0.14MPa)

DATA SHEET

IOM INSTRUCTIONS

LINE CARD

REQUEST A QUOTE

SOLENOID VALVES

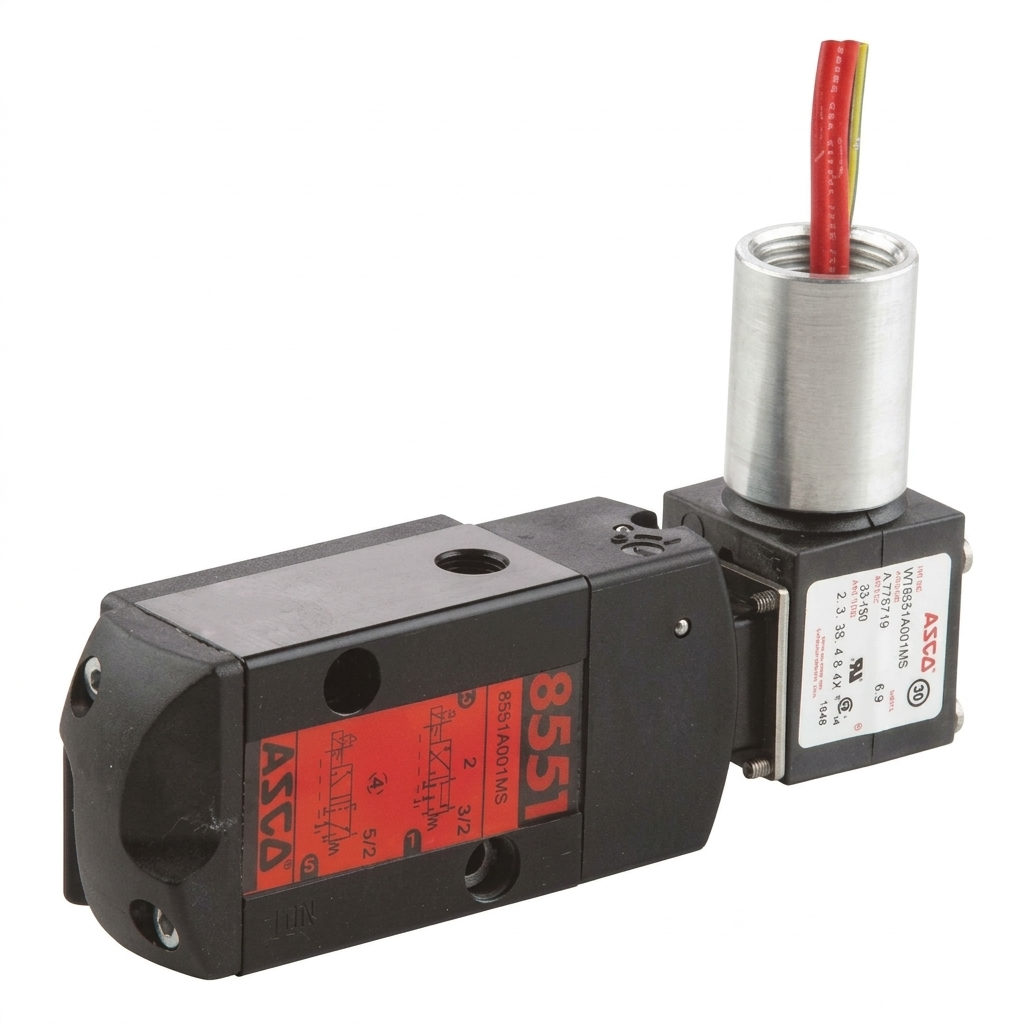

EF/WT/SC 8551/8553 SERIES

The ASCO 851/853 Series is a versatile NAMUR-interface pilot valve for controlling single- and double-acting pneumatic actuators across oil and gas, chemical, water/wastewater, power, pulp and paper, and general industrial applications. Featuring an aluminum body, NBR+PUR seals, and a 360°-rotatable coil, it operates from 29–145 psig (2–10 bar) at 24.7 SCFM, with a built-in slide valve for easy field conversion between 3/2 closed and 5/2 configurations.

Available in 24V DC, 120 VAC, and 220 VAC with Class F insulation, NEMA 4 to NEMA 7 protection, and 100% duty cycle, it operates from -13°F to 140°F and includes a manual hand operator—delivering reliable, code-compliant pilot control for your actuated valve packages.

coil type

Single Coil, Double Coil

Standard Voltage

DC24VDC, AC110V, AC220V

coil rating

NEMA 4, NEMA 7 CSA, UL, CE

Max Pressure

145 psig

Ambient Temperature

-13°F to 140°F

Flow Rate

24.7 SCFM/700L/Min

port size

Inlet = F1/4″; Exhaust = G1/8″ (FNPT)

DATA SHEET

LINE CARD

REQUEST A QUOTE

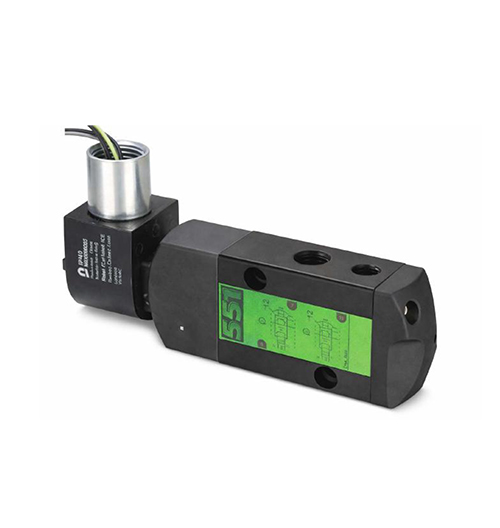

SV51 SERIES

The SV51 Series solenoid valve is a versatile NAMUR-interface pilot valve engineered to control single-acting and double-acting pneumatic actuators across oil and gas, chemical processing, water and wastewater, power generation, pulp and paper, and general industrial applications. Built with an aluminum body, NBR+PUR seals, and a 360°-rotatable coil, it operates from 29–145 psig (2–10 bar) on clean pneumatic air supply with a 24.7 SCFM flow rate, and a built-in slide valve allows easy field conversion between 3/2 closed and 5/2 configurations. Available in DC 24V, 120 VAC, and 220 VAC with Class F insulation, IP65 protection, 100% duty cycle, and European, American, or safe explosion-proof versions, the valve operates from -13°F to 140°F and includes a manual hand operator — delivering the reliable, code-compliant pilot control your actuated valve packages need.

coil type

Single Coil, Double Coil

Standard Voltage

DC24VDC, AC110V, AC220V

coil rating

IP67 Weather Proof, CSA & FM Approved Explosion Proof

Max Pressure

145 psig

Ambient Temperature

-13°F to 140°F

Flow Rate

24.7 SCFM/700L/Min

port size

Inlet = F1/4″; Exhaust = G1/8″ (FNPT)

DATA SHEET

LINE CARD

REQUEST A QUOTE

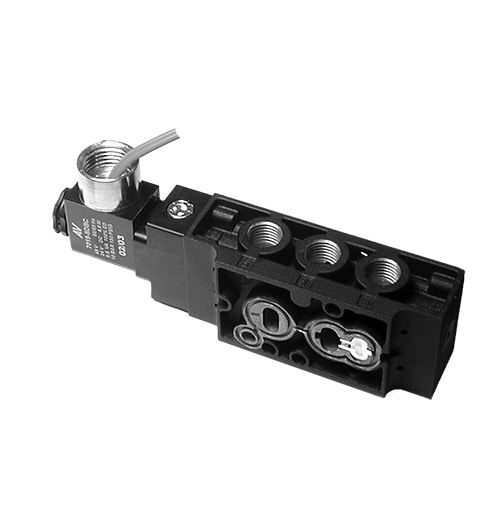

AVD SERIES

The AVD Series is a NAMUR-interface explosion-proof solenoid pilot valve engineered to control single-acting and double-acting pneumatic actuators in hazardous-location flow processes across oil and gas, chemical, mining, and pulp and paper industries. Built with an aluminum or 303/316 stainless steel body, balanced spool design, and bidirectional tapered Tee-Seal proven to 20 million cycles, it offers 3/2, 5/2, and 5/3 configurations with flow up to Cv 1.8 (1800 Nl/min), 1/4″ NPT or G ports, and operating pressures from 0–150 psig (0–10.3 bar). Available in 24V/12V DC and 120V/240V AC with continuous-duty coils, IP65 protection, optional manual override, and field-convertible external pilot supply, it carries CSA, FM, and ATEX approvals for Class I Div 1 Groups A–D up to Temperature Class T5, plus SGS-TÜV SIL 2/SIL 3 certification per IEC 61508 — delivering certified, code-compliant pilot control for actuated valve packages in the most demanding hazardous environments.

coil type

Single Coil, Double Coil

Standard Voltage

DC Current: 24V, 12V, 120V
AC Current: 60 Hz, 240V, 60 Hz

coil rating

CSA / FM, ATEX

Max Pressure

150 psig

Ambient Temperature

-20°F to 123°F (standard)
-40°F to 123F (low temperature)

port size

1/4″

DATA SHEET

LINE CARD

REQUEST A QUOTE

VALVE POSITION TRANSMITTER

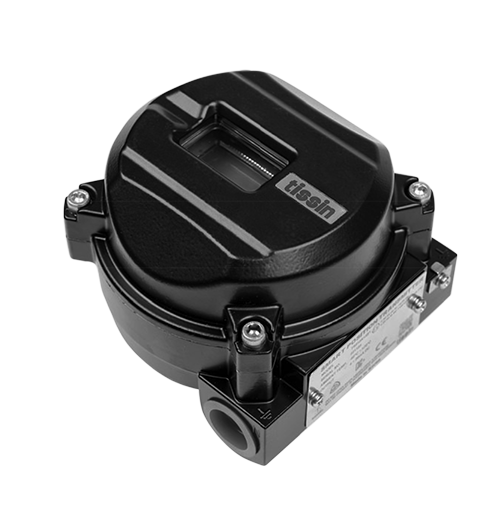

TS500/510/515 SERIES

The TS500 Series is a 2-wire type position transmitter that transmits a 4–20 mA DC signal corresponding to changes in valve or damper position. Key features include a 2-wire connection, an LCD display showing the current output signal, simple 2-button setup, and high accuracy and reliability. Two- or five-point smart setup capability makes calibration quick and straightforward across a range of applications.

motion type

Linear, Rotary

Conduit Entry

NPT 1/2, M20x1.5P, G1/2

Lever Type

Linear (10~70mm), Linear (70~150mm), Rotary (NAMUR)

Option

With Limit Switch and Dome Cover (only for rotary type), with Limit Switch and LCD

Ambient Temperature

-40°F to 185°F

Connection Type

2 Wire

Output Signal

4~20 mA

DATA SHEET

500 IOM INSTRUCTIONS

510 IOM INSTRUCTIONS

LINE CARD

REQUEST A QUOTE

VOLUME BOOSTER

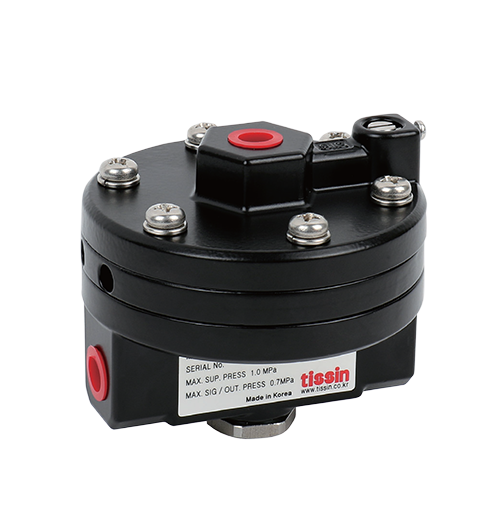

TS100 SERIES

The Volume Booster is a one-to-one signal-to-output supply air device that, when paired with a positioner or actuator, increases the stroking speed of control valves for improved process responsiveness. Available in three models (TS100, TS110, and TS120) to suit varying flow requirements, it features precise and fast response, soft seats for tight shut-off, adjustable sensitivity, and speed-up valve regulation. High and low temperature options are also available to support a wide range of operating conditions.

In/Output port size

1/4″, 1/2″, 3/4″

Material

Aluminum, Stainless Steel

air connection type

NPT PT (TS120/105/115/125) are ony available with NPT

ambient Temperature

-4°F to 158°F (standard)
-4°F to 248°F (high temperature)
-40°F to 158°F (low temperature)

Max Supply pressure

1MPa

Signal & output pressure

0.14~0.7MPa

signal to output ratio

1:1
