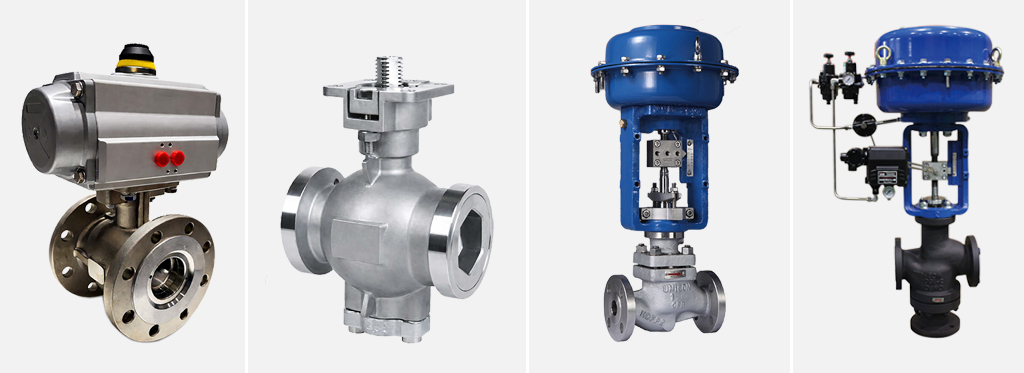

CONTROL VALVES
UNBALANCE TYPE GLOBE CONTROL VALVES

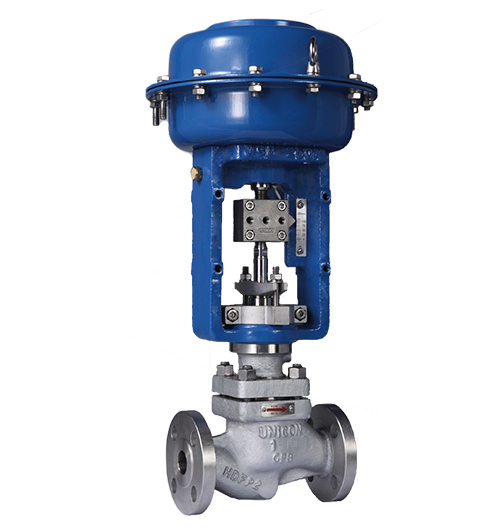

V100 SERIES
The V100 Series is a high-performance, top-guided single seat control valve built for precise flow control and minimal leakage. Its top-guiding design reduces friction and vibration, while the self-aligning insertion structure allows tool-free maintenance and easy trim replacement. Interchangeable cage options support both standard and severe-service conditions, including cavitation and noise reduction. A self-tightening, multi-level packing box with dust cover ensures leak-free, contamination-resistant sealing, and pressure-containing parts meet ASME nuclear power standards. The valve comes standard with a multi-spring diaphragm actuator, making it well suited for water, steam, gas, and other process media across a wide range of pressures and temperatures.
SIZES
1/2″ – 24″
BODY MATERIALs
Cast Steel, Stainless Steel, Chrome Moly, Specials
END CONNECTIONS
Threaded, RF Flanged, FF Flanged, Butt Weld, Tri-clamp, Socket Welding, Ring Joint, NPT Thread, Large Groove, Mal & Female, Wafer (Bolted)
BONNET TYPE
Standard, Cryogenic, Extension, Form Bellows, Weld Bellows, Jacket
FLOW CHARACTERISTICS
Equal Percentage, Linear, On-Off, Modified EQ%, Modified Linear %
ACTUATOR
Bear Stem, Gear Box, Diaphragm, Pneumatic Cylinder, Electric Motor, Hdro Cylinder
PRESSURE RATING
ANSI 150, ANSI 250, ANSI 300, ANSI 400, ANSI 600, ANSI 900, ANSI 1500, ANSI 2500, ANSI 4500
BALANCED TYPE GLOBE CONTROL VALVES

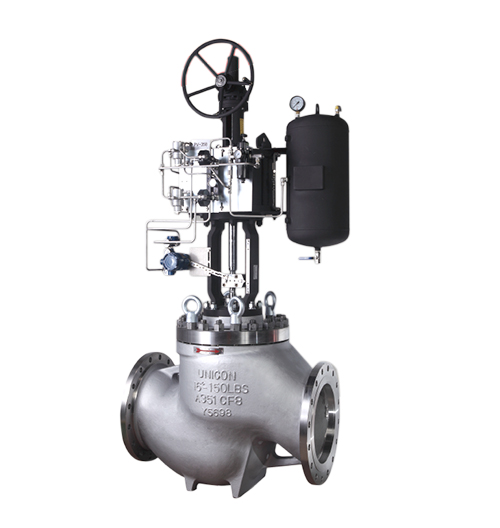

V200 SERIES
The V200 Series Cage Control Valve is a high-performance pressure-balancing control valve with a compact body and large-stroke, fully guided plug design that improves stability, reduces vibration, and extends service life. It uses piston rings and high-performance seal rings for low leakage, plus a maintenance-free self-tightening packing box with a dust cover, and its body is fully interchangeable with single-seat valves to allow online trim replacement. It offers low noise, minimal cavitation, wide rangeability, and precise flow characteristics, making it well suited to high pressure-drop applications. It comes standard with a high-performance actuator that delivers strong output force in a compact package across a range of media, pressures, and temperatures.
sizeS
1-1/2″ – 24″
BODY MATERIALS
Cast Steel, Stainless Steel, Chrome Moly, Special
END CONNECTIONS
Socket Weld, But Weld, FF/RF/RTJ Flange, JIS Flange, DIN Flange, NPT/PT Screw
SEATS
SS304, SS316. SS304+HF, SS316+HF, 316+STL, 316+STF, 17-4PH, 410SS, 420 J2 SS, Chrome Moly
FLOW CHARACTERISTIC
Equal %, Linear, On-Off, Modified EQ %, Modified Linear %
OPERATOR
Bare Stem, Gear Box, Diaphragm, Pneumatic Cylinder, Electric Motor, Hydro Cylinder
PRESSURE RANGE
Up to 6,171 psig
THREE WAY CONTROL VALVES

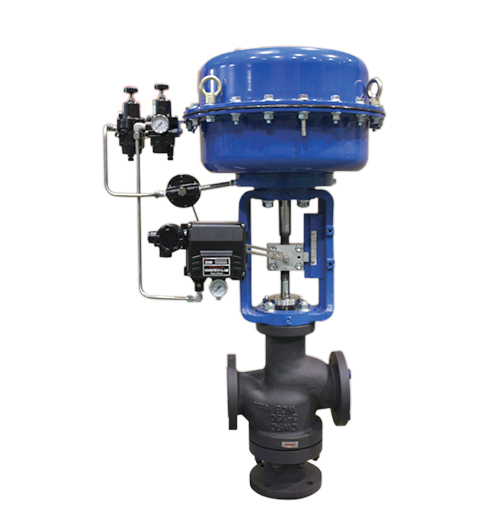

V300 SERIES
The V300 Series is a 3-way valve designed for either blending two flows into a common outlet or diverting one inlet into two proportional outlets, featuring a broad streamlined fluid passage for high capacity, port-and-cage plug guiding for stable operation, and a rugged construction for long, maintenance-free service. It pairs with pneumatic or electric actuators and uses non-welded seats that can be unscrewed and serviced in minutes, even after years of operation. The series comes in three configurations: the V310 with an unbalanced plug for simple, economical mixing service; the V320 with a balanced plug for high-duty diverting and large-size pneumatic applications, featuring a quick-change trim accessible from the bonnet; and the V330 combining an unbalanced plug with a top-entry quick-change trim. All three versions are designed with two side and one bottom pipeline connections for installation flexibility.
sizeS
1″ – 12″ (Mixing)
1″ – 4″ (Diverting)
BODY MATERIALS
Carbon Steel, Chrome Moly, Stainless Steel, Duplex, Monel, AL Bonze, Inconel 625, Hastelloy B/C
END CONNECTIONS
Socket Weld, But Weld, FF/RF/RTJ Flange, JIS Flange, DIN Flange, NPT/PT Screw
cv range
Up to 1800
FLOW CHARACTERISTIC
Equal %, Linear, On-Off, Modified EQ %, Modified Linear %
OPERATOR
Pneumatic Diaphragm, Pneumatic Cylinder, Electric Motorized, Electric Hydraulic
PRESSURE RANGE
ANSI 150, ANSI 300
ROTARY CONTROL VALVES

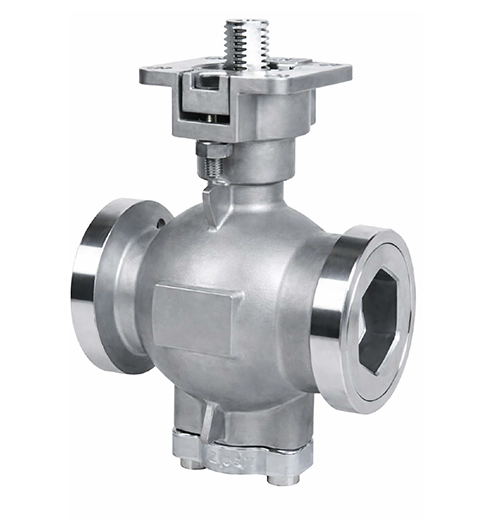

VRG SERIES
The VRG Series is a high-capacity rotary control valve with a “saddle” type plug and two-stem design that delivers higher Cv flow coefficients through a straight-through flow pattern. Its self-aligning eccentric rotating plug provides tight shutoff with low dynamic forces, and the 90-degree rotation maximizes flow capacity. The flangeless body has an integral extension bonnet supporting temperatures from -320°F to 750°F. Features like a separable bonnet, external packing gland, and blow-out proof stem ease maintenance, and the valve pairs with Vtek Controls’ VRD diaphragm actuator or VR/VEW/X electric actuators for tight spaces.
SIZES
1″ – 4″
BODY MATERIALS
Stainless Steel, Carbon Steel, 316L Stainless Steel, Duplex
END CONNECTIONS
ANSI 150 – 600
SEATS
Metal 316, Metal 316 + STF HF
PORT
Full Area, .60 Reduced Port, .40 Reduced Port, .20 Reduced Port
OPERATOR
Bare Stem, Gear Operated
PRESSURE RATING
ANSI 150 – 600
SEGMENTED V-BALL CONTROL VALVES

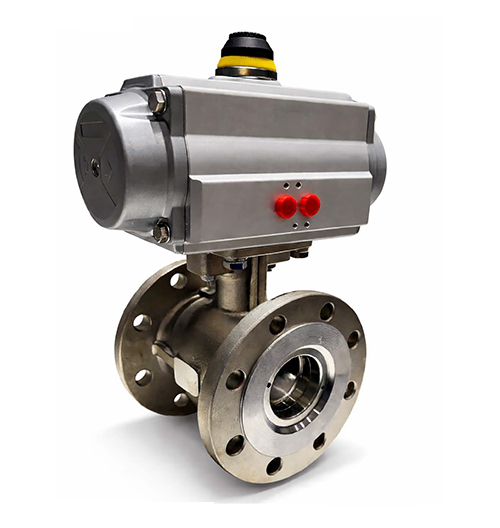

VSG SERIES
The VSG Series is a segmented V-ball control valve that delivers precise flow regulation with the durability and tight shutoff of a ball valve in a more compact, economical package than a traditional globe valve. Available in 1″–12″ sizes with CF8M, WCB, CF3M, or Duplex bodies, it features a blow-out proof stem/trunnion, inverted adjustable packing flange, ISO 5211 direct mounting, and high Cv, with Class VI soft-seat or Class IV metal-seat shutoff. Options include 60° or 90° V-notch ports, Stellite hardfacing for abrasive service, and ANSI 150/300/600/900 RF connections to suit a wide range of industrial applications.
sizeS
1-1/2″ – 12″
BODY MATERIALS
Stainless Steel, Carbon Steel, 316L Stainless Steel, Duplex
END CONNECTIONS
ANSI 150, ANSI 300, ANSI 600, ANSI 900, ANSI 150 – 600
SEATS
RTFE, CTFE, TFM-1600, Metal
PORT
V-port 60°, V-port 90°
OPERATOR
Bare Stem, Gear Operator
SHUT OFF
Class VI – Soft Seat
Class IV – Metal Seat
